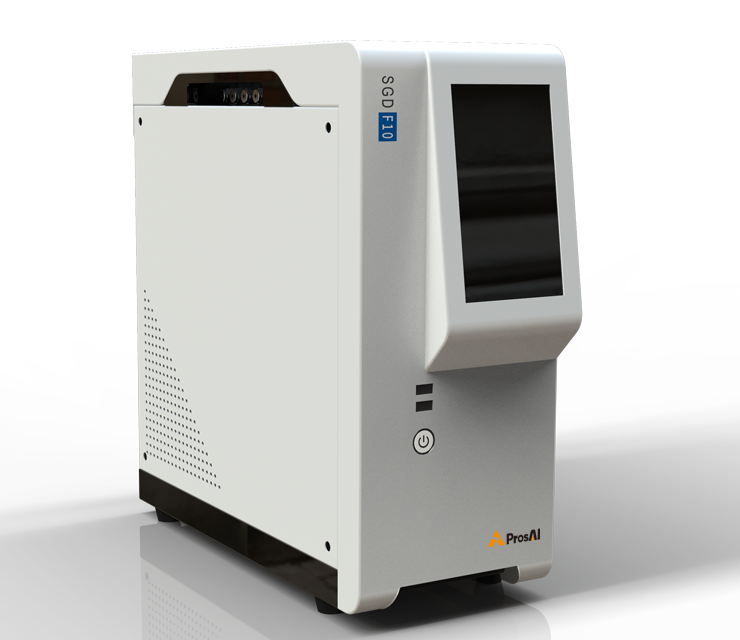

Product presentation
The static dilution method adopts the principle of differential pressure, environmental protection, safety, and gas saving standards (or samples). It can be used for precise dilution of various calibration gases such as VOCs.
Product Features
Sampling high-precision pressure measurement and precise control of gas distribution. According to the relationship between pressure and moles, various standard gases or diluents are added to the sampling tank accurately and quantitatively to achieve the purpose of dilution. It can be used for the dilution of gas standards and gas samples, and it can also be used for sample addition. Equipped with 7 channels. The pressure control range is 0~500 kPa. The total dilution factor can reach 10,000 times. All flow paths except for diluent use highly inert stainless steel pipes and joints. The whole process is controlled by software, the method can be edited and stored, and the dilution process can be stored and consulted for easy traceability.
Application Fields
